ISSN: 1885-5857 Impact factor 2025 4.2
Corrected proofs Journal pre-proofs

Original article
Preliminary validation of an echocardiographic formula for estimating left ventricular outflow tract area in severe aortic stenosis

Validación preliminar de una fórmula ecocardiográfica para estimar el área del tracto de salida del ventrículo izquierdo en estenosis aórtica grave

Onelia T. Greatty CremonesiaCarmen OlmosabEduardo PozoaPatricia MahíaaMaría Rivadeneira RuizaMaría LuacesaPedro Marcos-AlbercaaJosé Juan Gómez de DiegoaJosé Alberto de Agustína
https://doi.org/10.1016/j.rec.2026.03.013
Supplementary data
Imagen extra
10.1016/j.rec.2026.03.013
Abstract
Introduction and objectives

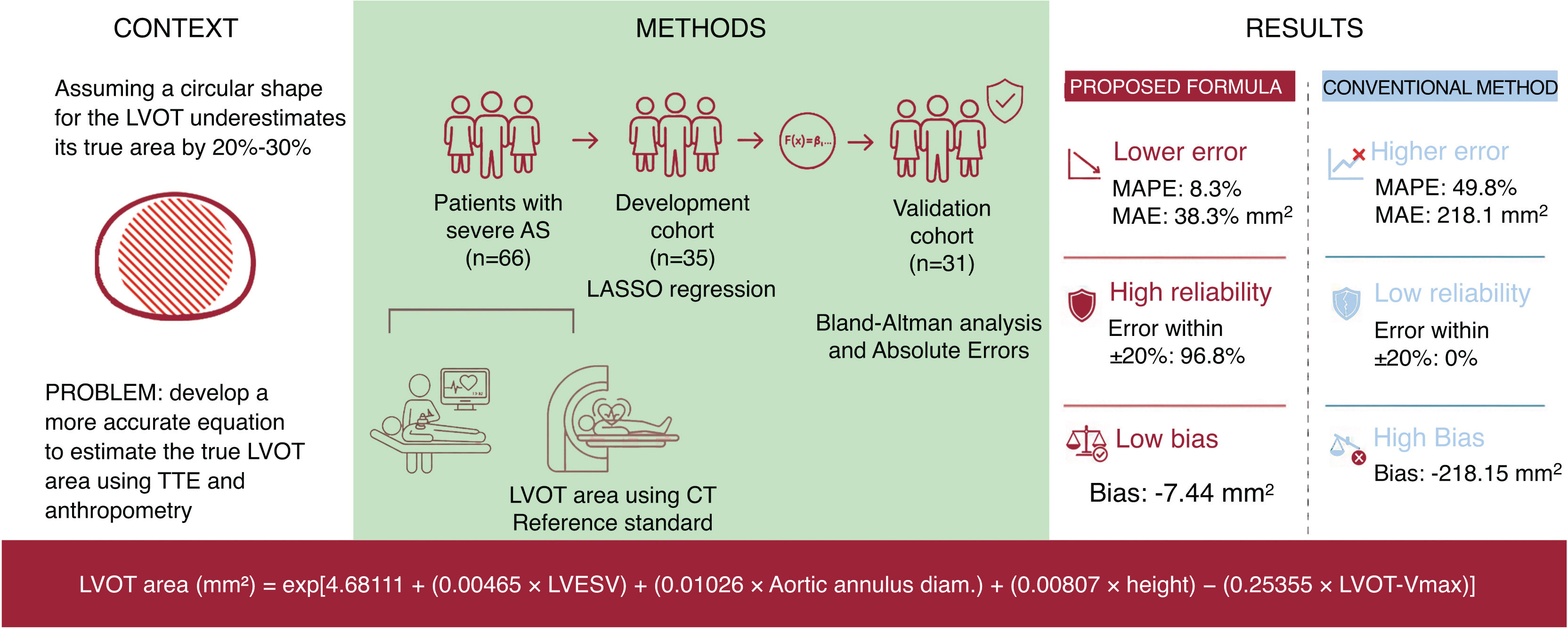

This study aimed to develop a transthoracic echocardiography-based formula to estimate left ventricular outflow tract area in severe aortic stenosis and to perform a preliminary validation. Computed tomography was used as the reference standard.

Methods

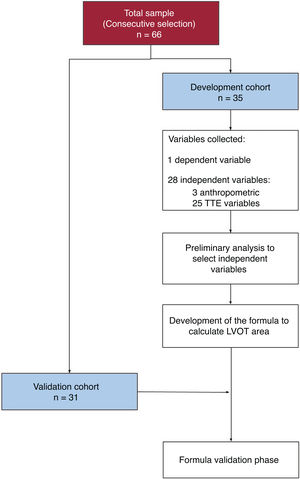

Retrospective cohort study including 66 patients divided into a development cohort (n=35) and a validation cohort (n=31). Least absolute shrinkage and selection operator (LASSO) regression was used to identify predictive variables.

Results

Four variables were selected: left ventricular end-systolic volume, aortic annulus diameter, maximum outflow tract velocity, and height, which were used to develop a predictive model. In the validation cohort, the proposed formula demonstrated a high coefficient of determination (R2=0.757) and good accuracy, with a mean absolute percentage error of 8.3%, significantly lower than that of the conventional echocardiographic method (49.8%), which showed systematic underestimation (P <.0001). Bland-Altman analysis showed no significant systematic bias (bias=–7.44mm2). Furthermore, 96.8% of predictions were within a ± 20% error margin.

Conclusions

The proposed formula showed promising preliminary results as an alternative to the conventional method for estimating left ventricular outflow tract area using transthoracic echocardiography. Further validation in larger cohorts is required before clinical adoption.

Keywords

Aortic stenosis
Echocardiography
Left ventricular outflow tract
Predictive formula
Continuity equation

Abbreviations

AS
CT
CT-LVOT area
LVOT
LVOT area
TTE
