Differences in Frame Geometry Between Balloon-expandable and Self-expanding Transcatheter Heart Valves and Association With Aortic Regurgitation
Diferencias en geometría entre válvulas percutáneas expandibles con balón y autoexpandibles y su relación con la insuficiencia aórtica
Visits
...
Ramón Rodríguez-Olivaresa, Zouhair Rahhaba, Nahid El Faquira, Ben Rena, Marcel Geleijnsea, Nico Bruininga, Nicolas M. van Mieghema, Carl Schultzb, Guenter Lauritschc, Peter P.T. de Jaegerea,
Corresponding author
p.dejaegere@erasmusmc.nl

Corresponding author: Thorax Center, Department of Cardiology, Erasmus MC,’ s-Gravendijkwal 230, 3015 CE Rotterdam, The Netherlands.
a Department of Cardiology, Erasmus Medical Center, Rotterdam, The Netherlands
b Department of Cardiology, Royal Perth Hospital Campus, School of Medicine and Pharmacology, University of Western Australia, Crawley, Australia
c Siemens Healthcare GmbH, Forchheim, Germany
This item has received
...
Visits
(Daily data update)
Article information
Abstract
Full Text
Bibliography
Download PDF
Statistics
Figures (4)
Show moreShow less
Tables (4)
Table 1. Baseline Characteristics
Table 2. Procedural Details
Table 3. Frame Analysis by Rotational Angiography
Table 4. Relation Between Frame Geometry and Aortic Regurgitation by Echocardiography
Show moreShow less
Additional material (1)
Abstract
Introduction and objectives

Patient- and procedure-related factors are known to be associated with aortic regurgitation after transcatheter aortic valve implantation. Nevertheless, this entity may also be caused by a specific device-host interaction due to the biomechanical properties of the valves, independently of clinical factors. We sought to elucidate the role of frame geometry in the occurrence of aortic regurgitation after Medtronic CoreValve and Edwards SAPIEN valve implantation.

Methods

We conducted an observational study encompassing 134 patients undergoing transcatheter aortic valve implantation with the Medtronic CoreValve and Edwards SAPIEN valve. Frame analysis was performed at 3 predefined levels of both valves by rotational angiography using dedicated motion compensation software. A distinction was made between patients with no-to-mild and moderate-to-severe aortic regurgitation by echocardiography.

Results

Baseline characteristics were similar between the 2 valves. Despite greater use of predilation in the CoreValve (95.2% vs 82.0%; P=.012), more oversizing (perimeter, 114±7% vs 103±7%; P<.001), and the same depth of implantation (noncoronary sinus, 7±4 vs 8±2mm; left coronary sinus, 8±4 vs 8±2mm), it was less expanded and more eccentric than the Edwards SAPIEN (83±7% vs 92±4%; P<.001 and 82±8% vs 95±3%; P<.001, respectively) and when eccentricity was adjusted for the patient's annulus eccentricity (4±13% vs 21±11%; P<.001). Eccentricity and adjusted eccentricity were associated with moderate-to-severe aortic regurgitation.

Conclusions

Independently of patient- and procedure-related factors, there is a device-specific device-host interaction that explains aortic regurgitation after transcatheter aortic valve implantation.

Keywords:
Aortic valve stenosis
Transcatheter aortic valve replacement
Rotational angiography
Abbreviations:
AR
ESV
MCS
MSCT
TAVI
Resumen
Introducción y objetivos

Se sabe que los factores relacionados con el paciente y con la intervención se asocian con insuficiencia aórtica después de un implante percutáneo de válvula aórtica. No obstante, también puede causarla una interacción específica entre el dispositivo y el huésped como consecuencia de las propiedades biomecánicas de las válvulas, con independencia de los factores clínicos. El objetivo de este estudio es esclarecer el papel de la geometría de la válvula en la aparición de insuficiencia aórtica después del implante de las válvulas Medtronic CoreValve® y Edwards SAPIEN®.

Métodos

Se llevó a cabo un estudio observacional que incluyó a 134 pacientes tratados con implante percutáneo de válvula aórtica empleando las válvulas Medtronic CoreValve® y Edwards SAPIEN®. El análisis geométrico se realizó en tres niveles predefinidos de ambas válvulas mediante angiografía rotacional con compensación de movimiento usando un programa informático específicamente desarrollado para este fin. Se estableció una distinción entre los pacientes con insuficiencia aórtica nula o leve y los pacientes con insuficiencia aórtica moderada o grave según la ecocardiografía.

Resultados

Las características basales eran similares con ambas válvulas. A pesar del mayor uso de predilatación en el grupo de CoreValve® (el 95,2 frente al 82,0%; p=0,012), el mayor exceso de tamaño de prótesis/anillo aórtico (perímetro, el 114±7% frente al 103±7%; p<0,001) y la misma profundidad de implante (seno no coronario, 7±4 frente a 8±2mm; seno coronario izquierdo, 8±4 frente a 8±2mm), esta válvula tuvo menos expansión (el 83±7% frente al 92±4%; p<0,001) y fue más excéntrica (el 82±8% frente al 95±3%; p<0,001) que la válvula Edwards SAPIEN®, también tras introducir un ajuste de la excentricidad respecto a la excentricidad del anillo valvular del paciente (el 4±13% frente al 21±11%; p<0,001). La excentricidad y la excentricidad ajustada se asociaron con insuficiencia aórtica moderada o grave.

Conclusiones

Independientemente de los factores relacionados con el paciente y con la intervención, existe una interacción entre dispositivo y huésped que es específica del dispositivo y explica la insuficiencia aórtica existente después de un implante percutáneo de válvula aórtica.

Palabras clave:
Estenosis valvular aórtica
Sustitución percutánea de válvula aórtica
Angiografía rotacional
Full Text
INTRODUCTION

Transcatheter aortic valve implantation (TAVI) is increasingly used for patients with severe aortic stenosis at high risk for surgical valve replacement and has been shown to be safe and effective compared with aortic valve replacement in such patients.1–5 Nevertheless, aortic regurgitation (AR) often occurs and is usually paravalvular. It is more frequent after the implantation of the self-expanding Medtronic CoreValve System (MCS) than the balloon-expandable Edwards SAPIEN valve (ESV).6–8

Patient- and procedure-related variables such as the amount and distribution of aortic root calcification, annular dimensions, the depth of implantation, and sizing have been identified as determinants of AR post-TAVI.9,10 Nevertheless, AR may also stem from a specific device-host interaction due to the intrinsic biomechanical properties of valves that in turn may affect frame geometry and the degree of expansion contributing to AR. There is evidence from multislice computed tomography (MSCT) analysis in selected patients that noncircular expansion and malapposition is more frequent after MCS than ESV valve implantation.11–14 To further elucidate the role of frame geometry and degree of expansion in relation to established patient- and procedure-related variables associated with AR, we incorporated rotational angiography with dedicated motion compensation 3-dimensional image reconstruction immediately after TAVI.15 The objective of this study was to assess and compare the geometric findings by rotational angiography between the MCS and ESV valve and its association with AR.

METHODSPatients

This was an prospective observational study with a study population of 150 consecutive patients with symptomatic severe aortic stenosis who underwent TAVI with the MCS or ESV and who underwent rotational angiography.15 Only patients with a single valve implantation (ie, patients with a valve-in-valve procedure were excluded) in a native aortic valve (ie, patients with failed bioprosthesis were excluded) and sufficient image quality for frame assessment (grade 1, 2 or 3) were included using the following score: grade 1, excellent image quality (struts visible without artifacts); grade 2, struts clearly visible, distinction between struts and artifacts possible; grade 3, struts visible but in some regions the distinction between struts and artifacts cannot be made; grade 4, degraded (struts are blurred and distorted), and grade 5, strongly degraded (struts and artefacts cannot be distinguished) (Figure 1). A total of 16 patients (MCS 14, ESV 2) were excluded from the analysis because of image quality grade 4 (8 patients) and 5 (8 patients). Therefore, the total study population was 134 (MCS 84, ESV 50).

Figure 1.

Image quality of rotational angiography; grade 1 (best quality) to grade 5 (worst). CT, central coaptation of the leaflets; ESV, Edwards SAPIEN valve; I, inflow; M, mid segment; MCS, Medtronic CoreValve system; N, nadir; O, outflow.

(0.18MB).

All patients underwent TAVI under general anesthesia via the femoral or subclavian artery or left ventricular apex after heart-team discussion. The MSCT was used for sizing in all patients except 9.16 Patients were first seen at the outpatient clinic and gave written informed consent for anonymized prospective data collection for clinical research purpose (TAVI Care and Cure project, MEC-2014-277).

Rotational Angiography, 3-dimensional Reconstruction and Frame Analysis

Rotational angiography was performed immediately after TAVI using the Artis zee angiographic C-arm system (Siemens Healthcare GmbH; Forchheim, Germany) with a 20×20cm detector and isotropic pixel length of 180μm. A total of 133 images were acquired in 5seconds along a 198° arc (99° right anterior oblique to 99° left anterior oblique view) during breath hold at a detector entrance dose of 0.36μm per frame.

Three-dimensional Reconstruction

From the projection images, a motion-compensated 3-dimensional image was reconstructed with prototype software (Siemens Healthcare GmbH) with a matrix of 256 and 0.5mm3 voxel size using a standard operating procedure.15 In summary, an electrocardiogram-gated reconstruction was made using the end-diastolic phase at 75% of the cardiac cycle since at that moment there is theoretically less motion. The electrocardiogram-gated reconstruction was used as a reference image for estimating cardiac motion. The estimated motion was compensated in a final reconstruction step. The total process took approximately 5minutes. The 3-dimensional reconstruction of the frame was then processed (eg, cropping) before analysis. Cross-sectional images were used for frame analysis.

Frame Analysis

Frame analysis was performed at 3 predefined levels of both valves. The dimensions of the MCS were measured at the inflow (0mm), nadir of leaflets (12mm from inflow), and central coaptation (24mm from inflow), as previously described.13 The dimensions of the ESV were measured at the inflow (0mm), mid segment (at 50% for XT, at the 3rd cross section for S3) (Figure 2), and outflow (top). At each of these levels, the minimum diameter (Dmin), maximum diameter (Dmax), area and perimeter were manually measured using the center point of the strut or struts (Figure 2).

Figure 2.

Cross-sectional view at the 3 levels of interest of the self-expanding Medtronic CoreValve and Edwards SAPIEN frame. A: inflow, B: nadir/mid segment; C: coaptation/outflow.

(0.09MB).

Valve sizing was defined by dividing the nominal valve size by the MSCT-derived annulus measures (Dmin, Dmax, Dmean and perimeter)×100 (%). The degree of frame expansion was calculated by dividing the measured perimeter by the nominal perimeter of that level (perimeterframe-measured/perimeterframe-nominal), as well as by relating the degree of expansion to the annulus perimeter (ie, adjusted degree of expansion) by calculating: perimetervalve-measured/perimeterannulus. For the MCS valve, the following nominal perimeters were used: inflow, 72.3, 81.7, 91.1 and 97.4mm for 23, 26, 29 and 31mm, respectively; nadir, 64.4, 75.4, 79.8 and 83.9mm for 23, 26, 29 and 31mm, respectively, and central coaptation, 68.8, 69.1, 72.6 and 76.3mm for 23, 26, 29 and 31mm, respectively (source: Medtronic Inc.; Mineapolis, United States). For the ESV, the calculated nominal perimeter of the inflow (ie, π×Dnominal) was used for all levels given the tubular shape of the ESV. The eccentricity of the frame was calculated by Dframe-min/Dframe-max at all levels. The eccentricity at the nadir (MCS) and mid segment (ESV) was adjusted to the eccentricity of the native valve using the following equation: (eccentricity nadir or mid segmenteccentricity native annulus/eccentricity native annulus)×100. This was done since this part of the frame is closer to the patients’ native annulus than the other parts of the frame.

Assessment of Aortic Regurgitation

Contrast angiography and Doppler echocardiography were used to assess AR immediately after TAVI and at discharge. With respect to contrast angiography, AR severity was defined using Sellers’ classification (0=none, 1=mild, 2=moderate, 3=moderate to severe, and 4=severe).17 For that purpose, a predefined angiography protocol was used that consisted of the injection of 20ml undiluted iodixanol (Visipaque™) at a flow rate of 20ml/s via a 6-Fr pigtail that was positioned just above the bioprosthetic leaflets. Cine runs were recorded at a speed of 30 frames/s. Two observers scored the angiograms independently from each another. If there was a discrepancy, consensus was reached by including a third observer. The intra- and interobserver variability for the assessment of AR post-TAVI according to Sellers’ classification were k = 0.70 and k = 0.78, respectively. A distinction was made between patients with Sellers’ grade 0-1 and those with Sellers’ grade 2-4.

Transthoracic Doppler echocardiography was performed before discharge. The AR severity was defined by the circumferential extent of the Doppler signal at the inflow of the MCS frame in the parasternal short axis view using the VARC-2 (Valve Academic Research Consortium-2) criteria.18 Echocardiography of sufficient quality to assess AR was available in 119 out of the 134 patients (89%). A distinction was made between patients with no AR and mild AR (< 10%) and those with moderate and severe AR (10% to 29% and ≥ 30%).

Statistical Analysis

Categorical variables are presented as frequencies and percentages and compared with the Pearson chi-square test. The normality of the continuous variables distributions was assessed using the Kolmogorov-Smirnov test and, since all the variables studied were (nearly) normally-distributed results, are presented as means±standard deviation and compared with the Student t test. Interobserver variability was calculated using intraclass correlation (Table 1 of the supplementary material). Statistical analyses were performed using SPSS software version 21.0 (IBM SPSS Statistics for Windows, Version 21.0; Armonk, New York, United States).

The main analysis consisted of the comparison of the geometry of the MCS and the ESV. The secondary analysis consisted of the assessment of the relationship between the geometry of the frame of both valves and AR. A distinction was made between (none or mild (< 10%) vs moderate or severe (10% to 29% and ≥ 30%) AR based on the short axis view of the echocardiography-Doppler examination before discharge (VARC-2 criteria).18

RESULTS

The baseline clinical and procedural data of all patients and of those treated with the MCS or ESV valve are summarized in Tables 1 and 2. By univariable analysis, there were no differences between patients treated with the MCS or ESV valve except for a lower body weight (74±14 kg vs 80±15 kg; P=.02), lower body surface area (1.8±0.2 m2 vs 1.9±0.2 m2; P=.044), a lesser prevalence of mitral regurgitation ≥ II at baseline (41.7% vs 64.6%; P=.021), and smaller annulus perimeter (78±7 mm vs 81±8 mm; P=.049) in patients treated with the MCS valve.

Table 1.

Baseline Characteristics

  Entire cohort
(n=134)
MCS
(n=84)
ESV
(n=50)
P
Age, y  82±80±78±10  .141
Male  78 (58.2)  47 (56.0)  31 (62.0)  .492
Height, cm  169±168±10  170±.253
Weight, kg  76±15  74±14  80±15  .020
Body mass index  26±26±28±.069
Body surface area, m2  1.9±0.2  1.8±0.2  1.9±0.2  .044
NYHA functional class ≥ III  93 (69.4)  59 (72.8)  34 (72.3)  .951
Previous CVA  30 (22.4)  22 (26.2)  8 (16.0)  .171
Previous MI  31 (23.1)  20 (23.8)  11 (22.0)  .810
Previous CABG  31 (23.1)  21 (25.0)  10 (20.0)  .507
Previous PCI  35 (26.1)  23 (27.4)  12 (24.0)  .667
Diabetes mellitus  30 (22.4)  17 (20.2)  13 (26.0)  .439
Hypertension  103 (76.9)  61 (72.6)  42 (84.0)  .131
Peripheral vascular disease  36 (26.9)  19 (22.6)  17 (34.0)  .151
Pulmonary hypertension  11 (8.2)  5 (6.0)  6 (12.0)  .217
Severe pulmonary hypertension  4 (3.0)  1 (1.2)  3 (6.0)  .114
COPD  36 (26.9)  26 (31.0)  10 (20.0)  .167
Atrial fibrillation  35 (26.1)  21 (25.0)  14 (28.0)  .702
Permanent pacemaker  9 (6.7)  4 (4.8)  5 (10.0)  .241
Logistic EuroSCORE, %  17±12  17±11  16±13  .678
Echocardiography and cardiac catheterization
LVEF, %  54±14  51±14  50±13  .864
Aortic valve area, cm2  0.70±0.2  0.69±0.2  0.74±0.2  .182
Peak gradient, mmHg  68±25  72±27  72±21  .993
Mitral regurgitation ≥ II  66 (49.3)  35 (41.7)  31 (64.6)  .011
AR baseline ≥ II  62 (46.3)  35 (41.7)  27 (57.4)  .083
AR index  25±11  26±12  24±.498
Multislice computed tomography
Minimal annulus diameter, mm  22±22±22±.614
Maximal annulus diameter, mm  27±27±28±.110
Mean annulus diameter, mm  25±25±25±.239
Perimeter annulus, mm  79±78±81±.049
Area annulus, mm2  469±84  469±83  488±85  .203
Annulus eccentricity, %  80±81±79±.240
Agatston score  3614±2403  3349±1922  4010±2964  .150

AR, aortic regurgitation; CABG, coronary artery bypass; COPD, chronic obstructive pulmonary disease; CVA, cerebrovascular event; ESV, Edwards SAPIEN valve; LVEF, left ventricular ejection fraction; MCS, Medtronic CoreValve system; MI, myocardial infarction; NYHA, New York Heart Association; PCI, percutaneous coronary intervention.

Data are expressed as no. (%) or mean±standard deviation

Table 2.

Procedural Details

  Entire cohort (n=134)  MCS
(n=84)
ESV
(n=50)
P
Access
Transfemoral  129 (96.3)  82 (97.6)  47 (94.0)
Transsubclavian  2 (1.5)  2 (2.4)  0 (0.0)
Transapical  3 (2.2)  0 (0.0)  3 (6.0)
Prosthesis size
23 mm  8 (6.0)  1 (1.2)  7 (14.0)
26 mm  46 (34.3)  20 (23.8)  26 (52.0)
29 mm  72 (53.7)  55 (65.5)  17 (34.0)
31 mm  8 (6.0)  8 (9.5)  0 (0.0)
Predilation
Preimplantation balloon dilation  121 (90.3)  80 (95.2)  41 (82.0)  .012
Balloon nominal/mean annulus diameter × 100, %  92±91±94±.024
Sizing
Valve size/minimal annulus diameter × 100, %  127±10  130±10  121±<.001
Valve size/maximal annulus diameter × 100, %  101±105±96±<.001
Valve size/mean annulus diameter × 100, %  112±116±107±<.001
Valve perimeter/perimeter native annulus × 100  110±114±103±<.001
Depth of implantation
Noncoronary sinus, mm  7±7±8±.055
Left-coronary sinus, mm  8±8±8±.459
Post-dilation
Post implantation balloon dilation  23 (17.2)  15 (17.9)  8 (16.0)  .783
Balloon nominal diameter/mean annulus diameter × 100, %  102±99±107±.019
Balloon nominal diameter/valve size × 100, %  92±88±102±<.001
AR post-TAVI
AR index  23±22±10  24±.454
AR post TAVI by aortography
Grade 0  17 (12.7)  4 (4.8)  13 (26.0)
Grade I  93 (69.4)  58 (69.0)  35 (70.0)
Grade II  22 (16.4)  20 (23.8)  2 (4.0)
Grade III  2 (1.5)  2 (2.4)  0 (0.0)
Grade IV  0 (0.0)  0 (0.0)  0 (0.0)
Grade ≥ II  24 (17.9)  22 (26.2)  2 (4.0)  .001
AR post-TAVI by echocardiography
Mild (< 10% circumferential extend of the leakage)  93 (80.2)  55 (76.4)  38 (86.4)
Moderate (10%-29% circumferential extend of the leakage)  19 (16.4)  15 (20.8)  4 (9.1)
Severe (> 30% circumferential extend of the leakage)  4 (3.4)  2 (2.8)  2 (4.5)
More than mild (≥ 10% circumferential extend of the leakage)  23 (19.8)  17 (23.6)  6 (13.6)  .191

AR, aortic regurgitation; ESV, Edwards SAPIEN valve; MCS, Medtronic CoreValve system; TAVI, transcatheter aortic valve implantation.

Data are expressed as no. (%) or mean±standard deviation

From a procedural perspective, patients treated with the MCS valve more often underwent balloon predilation than patients treated with the ESV valve (95.2% vs 82.0%; P=.012), albeit with a smaller balloon in relation to the patient's annulus (mean balloon diameter/mean diameter annulus×100 MCS vs ESV: 91±7% vs 94±5%; P=.024), and also received a larger valve relative to all MSCT-derived annulus measures compared with patients receiving the ESV (MCS vs ESV: Dmin, 130±10 mm; vs 121±8 mm; P<.001; Dmax, 105±8 mm vs 96±6 mm; P<.001; Dmean, 116±7 mm vs 107±5 mm; P<.001, perimeter 114±7 vs 103±7; P<.001) (Figure 3). After valve implantation, the depth of implantation was similar between the 2 groups as was the use of post-dilation (MCS, 17.9% vs ESV, 16%; P=.783), although the balloon used for post-dilation in the MCS group was smaller relative to the mean diameter of the patient's annulus (99±8 mm vs 107±3 mm; P=.019) and nominal valve size (88±5 mm vs 102±6 mm; P<.001).

Figure 3.

Scatter plot of the relationship between sizing (nominal valve perimeter/perimeter annulus measured by multislice computed tomography×100) and expansion (perimeter measured valve at the inflow/nominal valve perimeter at the inflow level×100).

(0.12MB).

Details of the frame geometry of the 2 valves are summarized in Table 3. The degree of expansion of the MCS valve was less at its inflow compared with the ESV (83±7 vs 92±4; P<.001). When we related the degree of expansion to the patient's annulus (adjusted expansion), no difference was found between valves either at the inflow or at the nadir/mid-segment (MCS vs ESV, 0.95±0.09 vs 0.95±0.05 and 0.91±0.07 vs 0.91±0.06, respectively) (Table 3). The MCS valve was more elliptical than the ESV at all levels (inflow, 82±8 vs 95±3; P<.001; nadir/mid segment, 83±8 vs 95±4; P<.001; coaptation/outflow, 90±6 vs 96±3; P<.001). This was also the case for the adjusted eccentricity (MCS, 4±13 vs ESV, 21±11; P<.001), which was more prevalent after MCS than ESV implantation (MCS, 36% vs 2% P<.001) (Figure 4).

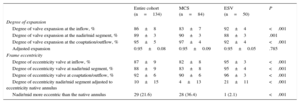

Table 3.

Frame Analysis by Rotational Angiography

  Entire cohort
(n=134)
MCS
(n=84)
ESV
(n=50)
P
Degree of expansion
Degree of valve expansion at the inflow, %  86±83±92±<.001
Degree of valve expansion at the nadir/mid segment, %  89±90±88±.001
Degree of valve expansion at the coaptation/outflow, %  95±97±92±<.001
Adjusted expansion  0.95±0.08  0.95±0.09  0.95±0.05  .785
Frame eccentricity
Degree of eccentricity valve at inflow, %  87±82±95±<.001
Degree of eccentricity valve at nadir/mid segment, %  88±83±95±<.001
Degree of eccentricity valve at coaptation/outflow, %  92±90±96±<.001
Degree of eccentricity nadir/mid segment adjusted to eccentricity native annulus  10±15  4±13  21±11  <.001
Nadir/mid more eccentric than the native annulus  29 (21.6)  28 (36.4)  1 (2.1)  <.001

ESV, Edwards SAPIEN valve; MCS, Medtronic CoreValve system.

Data are expressed as no. (%) or mean±standard deviation

Figure 4.

Example of the aortic annulus of 2 patients with similar annulus eccentricity (multislice computed tomography) treated with the Medtronic CoreValve and Edwards SAPIEN valve. Left panel: 3-dimensional rendered image of frame implanted. Right panel: frame geometry at the level of the nadir (Medtronic CoreValve) and mid segment (Edwards SAPIEN valve) by rotational angiography post transcatheter aortic valve implantation. Mid panel: cross-sectional view and eccentricity index of the Medtronic CoreValve (above) and Edwards SAPIEN valve (below) post transcatheter aortic valve implantation. MSCT, multislice computed tomography.

(0.35MB).

Separate analysis for the ESV-XT and ESV-S3 are summarized in Tables 2–5 of the supplementary material. Despite a lesser use of balloon predilation and less oversizing, a higher degree of expansion of the S3 compared with XT was noted and a similar degree of circularity with a trend to less post-dilation.

Aortic Regurgitation Post-implantation and Before Discharge

By contrast angiography, the prevalence of AR grade 0-1 and 2-4 after MCS implantation was 73.8% and 26.2% and was 96% and 4%, respectively, after ESV implantation. By echocardiography at discharge, the prevalence of no-to-mild and moderate-to-severe AR was 76.4% and 23.6% after MCS implantation and was 86.4% and 13.6% after ESV implantation (Table 2). Table 4 summarizes the relationship between frame geometry and AR post-TAVI (echocardiography at discharge, VARC-2). Aortic regurgitation ≥ 10% was related to the adjusted degree of expansion (the lesser the expansion, the more AR) as well as with the eccentricity and adjusted eccentricity of the frame at the nadir (MCS)/mid segment (ESV) and coaptation (MCS)/outflow (ESV). A similar trend was seen when we separately analyzed patients who received the MCS or ESV, but the sample size precludes firm conclusions.

Table 4.

Relation Between Frame Geometry and Aortic Regurgitation by Echocardiography

  Entire population (n=119)MCS (n=72)ESV (n=47)
  Entire cohort  < 10%  ≥ 10%  P  Entire cohort  < 10%  ≥ 10%  P  Entire cohort  < 10%  ≥ 10%  P
  (n=119)  (n=96)  (n=23)    (n=72)  (n=55)  (n=17)    (n=47)  (n=41)  (n=6)
Degree of Expansion
Inflow, %  87±87±84±.113  83±84±81±.260  92±92±93±.480
Nadir/mid segment, %  89±89±90±.509  90±90±90±.897  88±88±89±.446
Coaptation/outflow, %  95±95±96±.182  97±97±98±.897  93±93±93±.880
Adjusted expansion  0.95±0.07  0.95±0.07  0.92±0.08  .049  0.95±0.08  0.95±0.08  0.92±0.08  .131  0.94±0.05  0.95±0.04  0.92±0.09  .181
Degree of eccentricity
Inflow, %  87±87±84±.167  81±81±81±.734  95±96±95±.715
Nadir/mid segment, %  88±89±84±.015  83±84±81±.220  95±95±91±.019
Coaptation/outflow, %  92±93±90±.024  90±91±88±.206  96±96±93±.114
Adjusted eccentricity  10±15  12±14  3±16  .010  3±11  4±12  −1±.101  20±11  21±17±20  .472
Frame more eccentric than the native annulus  25 (22.7)  15 (16.9)  10 (47.6)  .002  24 (36.9)  15 (30.6)  9 (56.2)  .065  1 (2.2)  0 (0.0)  1 (20.0)  .004

ESV, Edwards SAPIEN valve; MCS, Medtronic CoreValve system.

Negative value denotes that the frame is more elliptical than native annulus.

Data are expressed as no. (%) or mean±standard deviation.

DISCUSSION

The main finding of the present study is that the frame of the self-expanding MCS valve is less expanded at its inflow and overall is more eccentric than the balloon-expandable ESV. This was also true when eccentricity was corrected for the eccentricity of the patient's annulus, which was found to be associated with a higher prevalence of AR by both angiography and echocardiography. These data indicate the existence of a device-specific device-host interaction that is associated with AR post-TAVI.

We acknowledge that these findings stem from an observational study with limited sample size and uneven distribution of patients per valve in addition to the absence of randomized allocation to one valve or the other, thereby precluding direct comparison of valve morphology and function. Nevertheless, there were no differences in baseline characteristics, including aortic root anatomy between patients receiving the MCS or ESV valve. Interestingly, balloon dilation before valve implantation was performed more often in patients receiving the MCS valve (albeit with a smaller balloon relative to the patient's annulus) in addition to a higher degree of oversizing (valve size relative to all MSCT-derived measures of the patient's annulus) in comparison with patients treated with the ESV. In addition, we found a higher incidence of AR ≥ 2 by angiography after MCS but no difference between the 2 valves when using echocardiography. This may be explained by the intrinsic differences between the 2 techniques for assessing AR in addition to their timing (angiography immediately after TAVI, echocardiography before discharge). In addition, the change may have played a role given the uneven distribution of patients for AR assessment (MCS, 84; ESV, 50).

The current clinical findings in patients with aortic stenosis who underwent TAVI are underscored by the experimental work of Tzamtzis et al.19 In a study using finite element analysis to study hoop force of the MCS and ESV-XT for different dimensions and rigidity of the left ventricle outflow tract, these authors found that the ESV had a stronger hoop force than the MCS for any left ventricle outflow tract diameter, independently of left ventricle outflow tract rigidity.19 This is not surprising since such a biomechanical property is mandatory for the safe implantation of the ESV valve, which is based upon the plastic deformation and, therefore the frame must withstand the forces of recoil of the left ventricle outflow tract after deflation of the delivery balloon, thereby ensuring valve geometry and function. A lesser hoop force of the self-expanding or super-elastic MCS valve is underscored by a clinical observation reporting that aortic root calcification had a higher discriminatory power for the prediction of balloon dilation after MCS valve implantation than annulus dimensions or the prosthesis-to-annulus ratio.12 Differences in biomechanical properties may also explain the current and previously reported difference in eccentricity between the MCS and ESV valves. In a series of 30 patients, symmetrical expansion of the MCS valve was seen in only 5 patients (17%), while circularity of the ESV was seen in all but 2 out of 89 patients (98%) and was independent of the native annular anatomy.13,14

The aggregate of these clinical and experimental data confirm and explain why the MCS frame conforms to the geometry of the patient's annulus, while the ESV dictates the geometry of the annulus and its contribution to the development of AR. Less AR after ESV implantation has consistently been reported by a number of observational studies and 1 randomized clinical trial directly comparing MCS and ESV.8–10 The question is to what extent does device-host interaction play a role in AR post-TAVI on top of patient- and procedure-related variables such as the amount and distribution of calcium, sizing, and depth of implantation? The present study lacked the power to analyze the contribution to AR relative to the aforementioned patient- and procedure-related variables due to sample size (ie, power) but also because of the equal distribution of baseline and procedural characteristics between patients treated with the MCS and ESV. Nevertheless, a frame with sufficient hoop force at least eliminates one of the components of the equation in the attempt to reduce of AR post-TAVI as seen with the ESV and novel generation devices.20,21

In this study, rotational angiography was used to assess frame geometry using dedicated prototype software for motion compensation that has been validated with MSCT.15 The advantage of rotational angiography over MSCT is that it is available on-line in the catheterization or hybrid operating room. Currently, it is unknown how and when to incorporate this information in the decision for further therapeutic measures such as additional balloon dilation, although a few clinical reports have demonstrated such a potential role and benefit.22 Their need may also be questioned with the advent of novel and more advanced TAVI technologies allowing precise positioning and repositioning if needed to reduce and even eliminate AR.20–24 The data of this study nevertheless indicate the need to either incorporate the calcium load of the aortic root into the sizing matrix in particular when using the MCS and/or to apply sufficient hoop force in the development of future catheter-based valves.

CONCLUSIONS

Rotational angiography is an easy, accurate, and relatively rapid method to assess frame geometry in the catheterization laboratory. After MCS implantation, frame eccentricity at the annulus is common and not necessarily associated with an increase in AR unless eccentricity is also increased from baseline. After ESV implantation, circularity is the rule and precludes significant AR.

CONFLICTS OF INTEREST

R. Rodríguez-Olivares receives a grant from the Spanish Society of Cardiology. G. Lauritsch works for Siemens Healthcare GmbH, Forchheim, Germany.

Acknowledgments

This work was supported by a grant from the Spanish Society of Cardiology.

References
[1]
M.B. Leon, C.R. Smith, M. Mack, D.C. Miller, J.W. Moses, L.G. Svensson, et al.
Transcatheter aortic-valve implantation for aortic stenosis in patients who cannot undergo surgery.
N Engl J Med., 363 (2010), pp. 1597-1607
[2]
C.R. Smith, M.B. Leon, M.J. Mack, D.C. Miller, J.W. Moses, L.G. Svensson, et al.
Transcatheter versus surgical aortic-valve replacement in high-risk patients.
N Engl J Med., 364 (2011), pp. 2187-2198
[3]
J.J. Popma, D.H. Adams, M.J. Reardon, S.J. Yakubov, N.S. Kleiman, D. Heimansohn, et al.
Transcatheter aortic valve replacement using a self-expanding bioprosthesis in patients with severe aortic stenosis at extreme risk for surgery.
J Am Coll Cardiol., 63 (2014), pp. 1972-1981
[4]
D.H. Adams, J.J. Popma, M.J. Reardon, S.J. Yakubov, J.S. Coselli, G.M. Deeb, et al.
Transcatheter aortic-valve replacement with a self-expanding prosthesis.
N Engl J Med., 370 (2014), pp. 1790-1798
[5]
D. Mylotte, R.L. Osnabrugge, S. Windecker, T. Lefèvre, P. De Jaegere, R. Jeger, et al.
Transcatheter aorticvalve replacementin Europe: adoption trends and factors influencing device utilization.
J Am Coll Cardiol., 62 (2013), pp. 210-219
[6]
K.E. O'Sullivan, A. Gough, R. Segurado, M. Barry, D. Sugrue, J. Hurley.
Is valve choice a significant determinant of paravalular leak post-transcatheter aortic valve implantation? A systematic review and meta-analysis.
Eur J Cardiothorac Surg., 45 (2014), pp. 826-833
[7]
E. Van Belle, F. Juthier, S. Susen, A. Vincentelli, B. Iung, J. Dallongeville, et al.
Post-procedural aortic regurgitation in balloon-expandable and self-expandable TAVR procedures: analysis of predictors and impact on long-term mortality: insights from the FRANCE2 Registry.
Circulation, 129 (2014), pp. 1415-1427
[8]
M. Abdel-Wahab, J. Mehilli, C. Frerker, F.J. Neumann, T. Kurz, R. Tölg, et al.
Comparison of balloon-expandable vs self-expandable valves in patients undergoing transcatheter aortic valve replacement: the CHOICE randomized clinical trial.
JAMA., 311 (2014), pp. 1503-1514
[9]
P. Généreux, S.J. Head, R. Hahn, B. Daneault, S. Kodali, M.R. Williams, et al.
Paravalvular leak after transcatheter aortic valve replacement: the new Achilles’ heel? A comprehensive review of the literature.
J Am Coll Cardiol., 61 (2013), pp. 1125-1136
[10]
G. Athappan, E. Patvardhan, E.M. Tuzcu, L.G. Svensson, P.A. Lemos, C. Fraccaro, et al.
Incidence, predictors, and outcomes of aortic regurgitation after transcatheter aortic valve replacement: meta-analysis and systematic review of literature.
J Am Coll Cardiol., 61 (2013), pp. 1585-1595
[11]
A.C. Ng, V. Delgado, F. Van der Kley, M. Shanks, N.R. Van de Veire, M. Bertini, et al.
Comparison of aortic root dimensions and geometries before and after transcatheter aortic valve implantation by 2- and 3-dimensional transesophageal echocardiography and multislice computed tomography.
Circ Cardiovasc Imaging., 3 (2010), pp. 94-102
[12]
C. Schultz, A. Rossi, N. Van Mieghem, R. Van der Boon, S.L. Papadopoulou, R. Van Domburg, et al.
Aortic annulus dimensions and leaflet calcification from contrast MSCT predict the need for balloon post-dilatation after TAVI with the Medtronic CoreValve prosthesis.
EuroIntervention., 7 (2011), pp. 564-572
[13]
C.J. Schultz, A. Weustink, N. Piazza, A. Otten, N. Mollet, G. Krestin, et al.
Geometry and degree of apposition of the CoreValve ReValving system with multislice computed tomography after implantation in patients with aortic stenosis.
J Am Coll Cardiol., 54 (2009), pp. 911-918
[14]
R.K. Binder, J.G. Webb, S. Toggweiler, M. Freeman, M. Barbanti, A.B. Willson, et al.
Impact of post-implant SAPIEN XT geometry and position on conduction disturbances, hemodynamic performance, and paravalvular regurgitation.
JACC Cardiovasc Interv., 6 (2013), pp. 462-468
[15]
C.J. Schultz, G. Lauritsch, N. Van Mieghem, C. Rohkohl, P.W. Serruys, R.J. Van Geuns, et al.
Rotational angiography with motion compensation: first-in-man use for the 3D evaluation of transcatheter valve prosthesis.
EuroIntervention., 11 (2015), pp. 442-449
[16]
C.J. Schultz, A.D. Moelker, A. Tzikas, A. Rossi, R.J. Van Geuns, P.J. De Feyter, et al.
Cardiac CT: Necessary for precise sizing for transcatheter aortic implantation.
EuroIntervention., 6 (2010), pp. G6-G13
[17]
R.D. Sellers, M.J. Levy, K. Amplatz, C.W. Lillehey.
Left retorgrade cardioangiography in acquired cardiac disease: technic, indications and interpretations in 700 cases.
Am J Cardiol., 14 (1964), pp. 437-447
[18]
A.P. Kappetein, S.J. Head, P. Généreux, N. Piazza, N.M. Van Mieghem, E.H. Blackstone, et al.
Updated standardized endpoint definitions for transcatheter aortic valve implantation: the Valve Academic Research Consortium-2 consensus document.
Eur Heart J., 33 (2012), pp. 2403-2418
[19]
S. Tzamtzis, J. Viquerat, J. Yap, M.J. Mullen, G. Burriesci.
Numerical analysis of the radial force produced by the Medtronic-CoreValve and Edwards-SAPIEN after transcatheter aortic valve implantation (TAVI).
Med Eng Phys., 35 (2013), pp. 125-130
[20]
I.T. Meredith, D.L. Walters, N. Dumonteil, S.G. Worthley, D. Tchétché, G. Manoharan, et al.
Transcatheter aortic valve replacement for severe symptomatic aortic stenosis using a repositionable valve system: 30-day primary endpoint results from the REPRISE II study.
J Am Coll Cardiol., 64 (2014), pp. 1339-1348
[21]
N. Piazza, G. Martucci, K. Lachapelle, B. De Varennes, L. Bilodeau, J. Buithieu, et al.
First-in-human experience with the Medtronic CoreValve Evolut R.
EuroIntervention., 9 (2014), pp. 1260-1263
[22]
R. Rodríguez-Olivares, N.M. Van Mieghem, P.P. De Jaegere.
The role of frame geometry assessment during transcatheter aortic valve replacement by rotational angiography.
JACC Cardiovasc Interv., 7 (2014), pp. e191-e192
[23]
E. García, L. Unzué, E. García, J. Solís, R. Teijeiro, B. Tarancón.
Experiencia inicial con la válvula aórtica percutánea de muy bajo perfil SAPIEN 3.
Rev Esp Cardiol., 67 (2014), pp. 953-954
[24]
M. Larman Tellechea, M. Telleria Arrieta, G. Lasa Larraya, J.C. Sanmartin Pena, K. Gaviria Molinero.
Implante transcatéter de la válvula aórtica Lotus™: serie inicial de 5 casos.
Rev Esp Cardiol., 67 (2014), pp. 956-958

The concepts and information presented in this paper are based on research and are not commercially available. The product names and brands referred to are the property of their respective trademark holders.

Copyright © 2015. Sociedad Española de Cardiología
Idiomas
Revista Española de Cardiología (English Edition)

Subscribe to our newsletter

Article options
Tools
Supplemental materials
es en

¿Es usted profesional sanitario apto para prescribir o dispensar medicamentos?

Are you a health professional able to prescribe or dispense drugs?

es en
Política de cookies Cookies policy
Utilizamos cookies propias y de terceros para mejorar nuestros servicios y mostrarle publicidad relacionada con sus preferencias mediante el análisis de sus hábitos de navegación. Si continua navegando, consideramos que acepta su uso. Puede cambiar la configuración u obtener más información aquí. To improve our services and products, we use "cookies" (own or third parties authorized) to show advertising related to client preferences through the analyses of navigation customer behavior. Continuing navigation will be considered as acceptance of this use. You can change the settings or obtain more information by clicking here.
