We included all the patients diagnosed during the neonatal period as having d-TGA or Taussig-Bing anomaly who underwent the arterial switch operation in the Hospital Infantil Virgen del Rocío in Seville, Spain, between 1985 and 2010, and have continued their follow-up in our health services area to the present day. Only 1 of the patients who survived surgery was excluded because there was no available information on postoperative visits and his current clinical status was unknown. The study was approved by the ethics committee of our center.

The details on anatomy, surgical techniques, and perioperative complications were obtained from surgical records. The patients were classified according to the anatomical type of d-TGA: simple, intact ventricular septum, and complex, with associated anomalies like ventricular septal defect (VSD), subpulmonary left ventricular outflow tract obstruction, and/or aortic arch anomalies (aortic coarctation, interruption or hypoplasia of the aortic arch). Taussig-Bing anomaly (double outlet right ventricle with d-TGA and subpulmonary VSD) was also included as an extreme form of complex d-TGA with VSD. The coronary anatomy was recorded at the time of surgery and the different patterns were grouped according to the classification of Yacoub and Radley-Smith12

We reviewed retrospectively the patients’ clinical and demographic data (including mid-term mortality, reinterventions, and complications) and the diagnostic and therapeutic procedures (Doppler echocardiography, cardiac magnetic resonance, myocardial perfusion studies—single photon emission computed tomography [SPECT], computed tomography, diagnostic and therapeutic cardiac catheterization, and surgical protocols).

Operative mortality was considered to be that occurring prior to hospital discharge or within 30 days of the arterial switch operation and late mortality, that occurring during follow-up after the 30-day postoperative period. For the analysis of mortality during follow-up, the causes of death were classified: a) sudden cardiac death; b) heart failure; c) perioperative, when it occurred within the first 30 days after a cardiac surgical intervention; d) other cardiovascular causes, such as endocarditis, pulmonary or systemic embolism, aortic rupture or dissection, or myocardial infarction, and e) nonvascular cause, such as infections, malignant tumors, or injuries. Reintervention was considered to be any percutaneous or surgical intervention during follow-up after the arterial switch operation, and significant arrhythmia was any sustained supraventricular or ventricular arrhythmia, complete atrioventricular block, or sinus node dysfunction that required treatment. Coronary artery complications were defined as follows: a) nonfatal acute coronary syndrome; b) myocardial ischemia demonstrated by SPECT, and c) obstructive lesions greater than 70% in a coronary artery according to coronary angiography.

In the final follow-up visit, functional status was assessed according to the New York Heart Association classification. We also analyzed the echocardiograms corresponding to this final clinical evaluation, all of them performed in our center in accordance with internal protocols following the current clinical guidelines.13 These studies were complemented by cardiac magnetic resonance and computed tomography angiography when the echocardiogram was not conclusive or to confirm the severity of the lesions that required treatment. Aortic regurgitation (AR) was graded semiquantitatively as mild, moderate, or severe by color Doppler echocardiography, and aortic root dimensions were determined using two-dimensional (2D) and M-mode echocardiography. A diameter greater than 36mm at the level of the sinuses of Valsalva was considered to indicate dilation. Right ventricular outflow tract obstruction was evaluated by means of 2D, color Doppler, and continuous wave Doppler echocardiography. The obstruction was considered to be moderate or severe when the peak gradient obtained with Doppler echocardiography was greater than 36mmHg or greater than 50mmHg, respectively. Depending on the location of the obstruction, it was also classified as subvalvular, valvular, or supravalvular (main pulmonary artery and right and left branches). The assessment of subaortic left ventricular function was based on the M-mode and 2D echocardiographic measurements. In case of conflicting findings, the cardiac magnetic resonance study of ventricular function was used.

The continuous variables are expressed as the mean (standard deviation) and the categorical variables as percentages. The follow-up time was computed from the date of the operation to the final visit or until the first episode of cardiac death or reintervention. For the purposes of this study, patients older than 14 years were classified as adults. Age and length of follow-up were considered as continuous variables and the remainder of the variables as categorical. Comparisons between groups were performed with Student t test or Mann-Whitney U test in the case of continuous variables as appropriate, depending on whether or not the distributions were normal, and with the chi-squared test for categorical variables. The analysis of survival and intervention- or complication-free survival was carried out using Kaplan-Meier curves, and the log rank test was employed to compare the survival curves. The statistical analysis was performed with the SPSS 15.0 software package for Windows (SPSS, Inc.; Chicago, Illinois, United States). A two-sided P value <.05 was considered statistically significant.

A total of 155 patients (68% boys) diagnosed as having d-TGA underwent the arterial switch operation between 1985 and 2010, 24% of them (37 patients) prior to 1998. Table 1 summarizes the baseline anatomical features of this group. Prior to this anatomical correction, Rashkind atrial septostomy with a balloon catheter was performed in 83% of the patients, and palliative surgery or surgical treatment of aortic coarctation was required in 9 patients (6%): pulmonary artery banding in 4 patients, pulmonary artery banding and Blalock-Taussig systemic-to-pulmonary artery shunt in 1 patient, aortic arch surgery in 1 patient, and aortic arch surgery and pulmonary artery banding in 3 patients. The arterial switch operation was carried out at a median age of 13 days (range, 4 days to 11 years). In all, 75% of the patients underwent surgery during the first 19 days of life and 13% at ages ranging from 20 days to 2 months.

The overall operative mortality rate was 11.6% over the 25-year period. Although the difference did not reach statistical significance, the mortality was reduced over time, from 19% between 1985 and 1998 to 8% from 1998 to 2010. The only factors that were found to be associated with perioperative mortality were the need for previous aortic arch surgery (50% vs 1.5%; P=.004) and the cardiopulmonary bypass time (4.6% less than or equal to 200min vs 13.8% greater than 200min; P=.09). Although in the majority of cases (93%) perioperative deaths were due to coronary complications, the coronary pattern was not found to be significantly associated with early mortality: a mortality rate of 10% in patients with the favorable coronary patterns (A, D, and E) vs 20% in those with the more unfavorable patterns (B and C) (P=.3).

Over a median period of 6 years [interquartile range, 3 years to 11 years], there were 4 deaths among 137 perioperative survivors (2.9%), which represents a 20-year survival rate of 96% (Figure 1A). Although the patients operated on prior to 1998, who have now reached the age of transitioning from the pediatric clinic to the adult congenital heart disease unit, had more frequently undergone palliative surgery prior to the anatomical correction (12.5% vs 4%; P=.07), and thus were older when the surgical repair was carried out (528 days vs 22 days; P=.03), the mean mid-term to long-term survival in the two groups is comparable (Figure 1B), with good prospects for surviving surgery in both time periods. Table 2 shows the characteristics of the patients who died during follow-up. All of them had complex d-TGA with the usual coronary pattern and 2 patients (50%) required surgical treatment for severe aortic coarctation prior to the arterial switch operation. Three of the deaths were due to cardiac problems and 50% of them were secondary to coronary complications during follow-up. None of the deaths occurred during adolescence or adulthood.

Figure 1.

Actuarial survival curves corresponding to long-term survival in the overall population of patients with complete transposition of the great arteries who underwent the arterial switch operation (A), comparing the patients treated prior to and after 1998 (B), and Kaplan-Meier curve showing long-term reintervention-free survival (C). NS, not significant.

(0.12MB).

In our series, 93% of the patients were in functional class I at the time of the final office visit and the remaining 7% were in class II. There were no significant arrhythmias except for asymptomatic sinus node dysfunction (1%) and atrioventricular block that required pacemaker implantation in 2% of the patients. The mean left ventricular ejection fraction was 62%, and it was less than 45% in the latest echocardiographic study in only 2.5% of the cases.

Only 3 of the 137 patients developed nonfatal, surgery-related coronary complications that required early reintervention within the first 30 days after d-TGA. Ventricular dysfunction persisted in 1 of these patients. There were no symptoms of obstructive coronary artery disease in any case, nor were there coronary reinterventions during follow-up. In 8.5% of the cases, echocardiography revealed the presence of changes in segmental contractility, and left ventricular dysfunction (left ventricular ejection fraction less than 40%) was observed in only 2%. SPECT was performed in 34 patients, and fixed or reversible perfusion defects were found in 14 (41%). We had access to invasive or noninvasive coronary angiograms of 23% of the patients during follow-up. We should point out that the sensitivity of the ischemia tests (64%) proved to be low (Table 3).

In all, 37 reinterventions were carried out in 24 patients (18%) and over half of them (54%) required more than one reintervention. In fact, reintervention-free survival was only 81% and 63% after 10 years and 15 years, respectively (Figure 1C). In our series, in no case was mortality associated with the reinterventions, and the major indications were right ventricular outflow obstruction (34 patients), AR (1 patient), and VSD closure due to patch dehiscence (2 patients). The reintervention was exclusively percutaneous in 8 patients, surgical in 3, and percutaneous with subsequent surgical treatment in 13. Figure 2 shows the temporal distribution of the interventions.

Figure 2.

Types of complications occurring during follow-up and temporal distribution of the complications and interventions. Ao, aorta; RVOT, right ventricular outflow tract.

(0.31MB).

In all, 17% of the patients had lesions in right ventricular outflow tract that required intervention (Figure 3): 17 cases of main pulmonary artery stenosis, 6 cases of pulmonary branch stenosis, and 1 case of neopulmonary valve stenosis. The procedures performed were percutaneous pulmonary valvuloplasty (1 patient), main pulmonary artery angioplasty (15 patients), percutaneous stent placement in pulmonary branch (1 patient), and stent angioplasty of main pulmonary artery and branches (4 patients). Treatment was surgical in 14 patients: 10 cases of main pulmonary artery patch enlargement, 1 case of pulmonary transannular patch, and 3 patients with enlargement of main pulmonary artery and branches. The percutaneous treatment was definitive in only 38% of the cases and 55% (13/24) required a second reintervention. In the last follow-up echocardiogram (Figure 4), 31% of the patients presented some degree of right ventricular outflow tract obstruction and 17% had a peak gradient greater than 50mmHg. The incidence and degree of residual stenosis in the patients who had required reintervention during their childhood were significantly higher than those of the subjects who had not required reintervention.

Figure 3.

Three-dimensional volume rendering. Right lateral view (A) and anteroposterior view (B) of right ventricular outflow tract, showing supravalvular pulmonary stenosis and bilateral branch pulmonary artery stenosis.

(0.08MB).

Figure 4.

Percent distribution of patients with residual stenosis of right ventricular outflow tract according to the severity of the obstruction measured by Doppler echocardiography.

(0.06MB).

Figure 5 shows the lengths of the periods of survival free of dilation, AR, and reintervention of the neoaortic root in our series of patients. Although AR was relatively common (28% of the patients), it was mild in the majority of cases (grade I, 78%; grade;grade II, 8%; and grade III, 3%), and reintervention of the valve replacement was required in only 1 case. Up to 16% of the patients had an aortic root size greater than 36mm at the level of the Valsalva sinuses. All the cases of significant AR (grade greater than III) corresponded to patients with dilated aortic root.

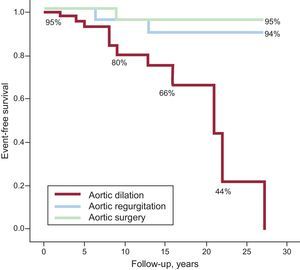

Figure 5.

Kaplan-Meier curves corresponding to survival free of aortic dilation, aortic regurgitation, and surgery to treat aortic dilation and/or aortic regurgitation.

(0.08MB).

There are inherent limitations in the retrospective nature of the study, among them the fact that the data are obtained from follow-up and complementary examinations that were not performed in a uniform manner, particularly in the assessment of coronary complications. In our center, at present the evaluation of the coronary anatomy is carried out in accordance with a protocol; however, ischemia studies and coronary angiograms were not performed systematically in all the patients, and the results of SPECT and of coronary angiography, invasive and noninvasive, are available in very few cases. Thus, we have defined a coronary complication as an event combining clinical findings, noninvasive ischemia tests, and coronary angiography. In this context, the results concerning the prevalence of complications should be interpreted with caution to avoid reaching conclusions that cannot be deduced from the observations of this study. Likewise, we cannot provide an objective assessment of the functional capacity. Finally, the small number of complications and the relatively short follow-up period are insufficient for the identification of groups at risk for long-term complications.
